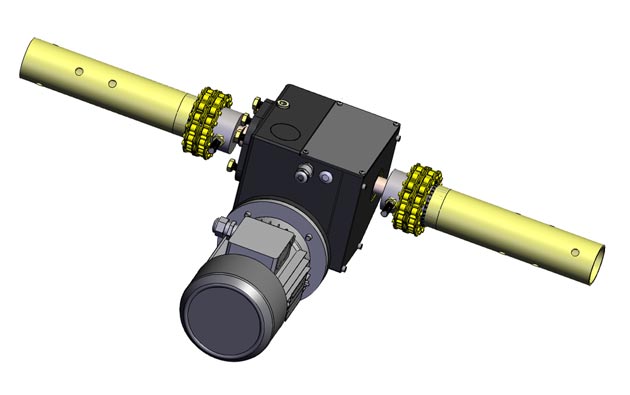

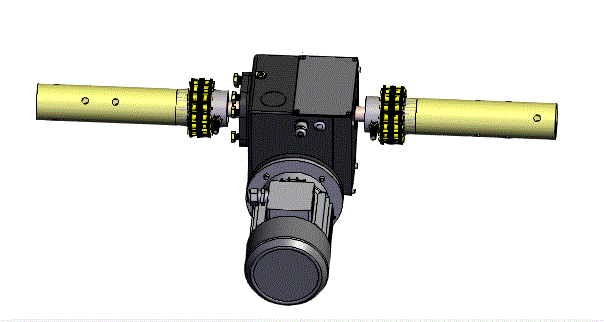

A complete unit for the ventilation side curtains. NGB Elram Industries’ N500 HD gearbox design with chain sprocket couplings and sleeve fitted for the curtain’s pipe (1″ / 2″).

  • Built-in adjustable Limit Switches.
  • Power: 3-Phase, 0.37Kw, 220/380Vac, 50/60Hz, 1400 rpm.
  • Peak Torque: 500Nm.
  • Output speed: 2.8 rpm.
  • The N500 unit comes with an Emergency Manual Operation shaft extension.
  • GearMotor weight: 21 Kg.
  • Optional Accessories:
    • Various mounting brackets available:
      • Vertical mounting bracket (standard).
      • Right-angel mounting bracket.
