Inside the gymnasium you will find all sorts of drive systems, one of them is our new Acoustic Gym Divider Curtain Gear-Motor.

The AGDC Gear-Motor is a new concept-design specially made for our partners in the gymnasium and sports industry.

The AGDC Gear-Motor Drive System is a standard approved system by The Standards Institution of Israel (SII).

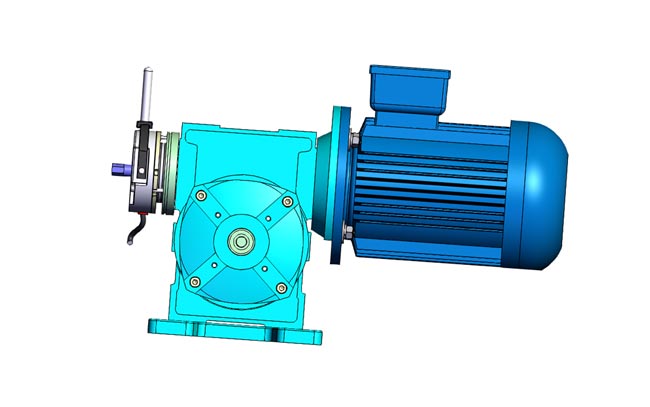

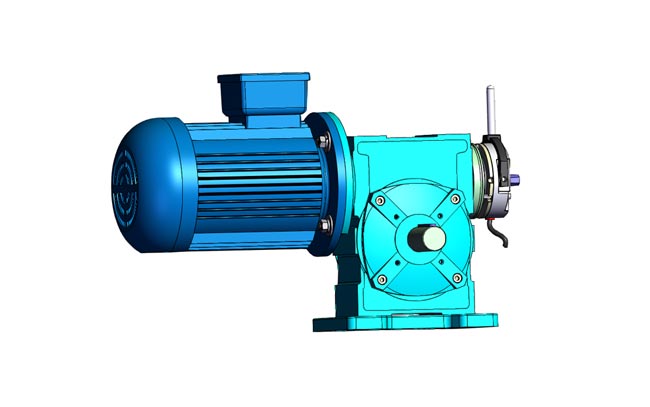

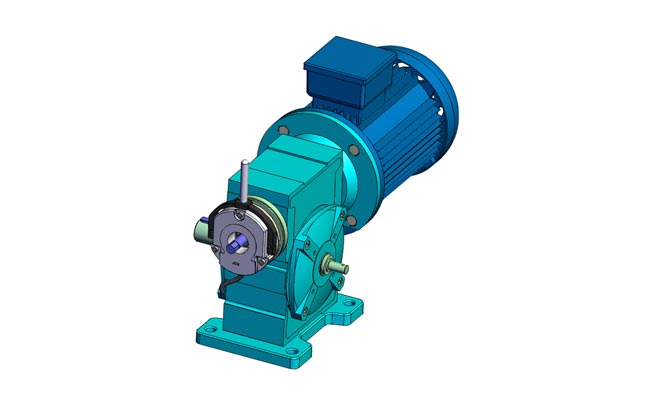

The system includes a 3 phase thermally protected reversing electric motor with electric brake, coupled to a 1:60 double-output worm gear transmission sized and selected to the curtain’s requirement.

The AGDC comes with an advanced Limit Switch System that includes an emergency Over-Travel switches and an Electromagnetic brake.

AGDC Gear-Motor Main Characteristic:

  • Electromagnetic brake 100VDC
  • Relible Limit Switch system (150 Revolutions).
  • Gearbox 1:60 with doubled shaft.
  • IEC90 B5 1.5 Kw 3000 rpm motor.
  • Rated power: 0.89 Kw at 1500 rpm
  • or 1.78 Kw at 3000 rpm.
  • Braking Torque: 460 Nm.
  • Manual operation shaft extension.
