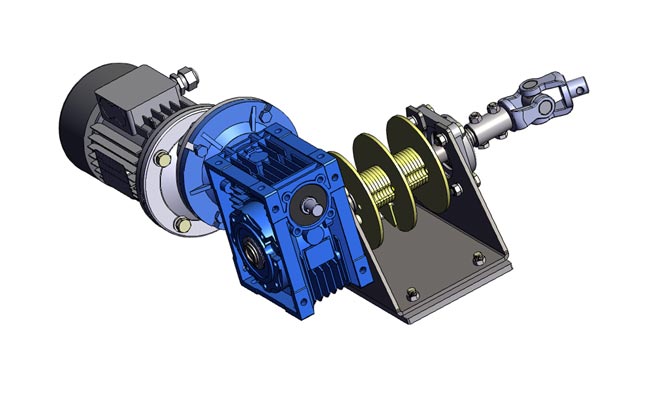

High-Torque Feeding line lifting unit with universal joint coupled to shaft extension for optional 2nd line drive.
The EL30451 unit with pre-stage gearbox is suitable for high loads / long feeding line and has the capability to drive 2 feeding lines simultaneously by connecting a pipe to the universal joints and direct drive a secondary idler Lifting Unit (drum assembly + mounting bracket P/N: EL30451-0010).
- Motor: 3-Phase, 0.37Kw, 50Hz
- Output Speed: 6 rpm
- Peak Torque: 235Nm
- Lifting load with 2:1 cabling: 800Kg
- Robust ceiling Mounting Plate.

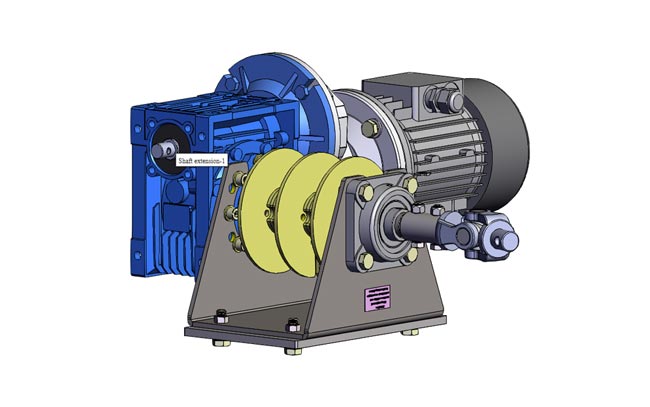

Emergency manual operation shaft extension (power outage).
