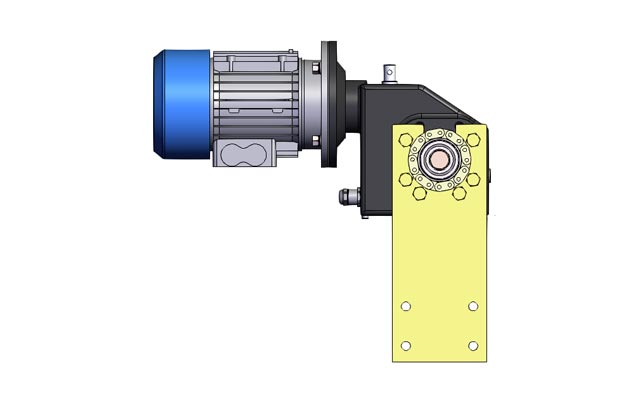

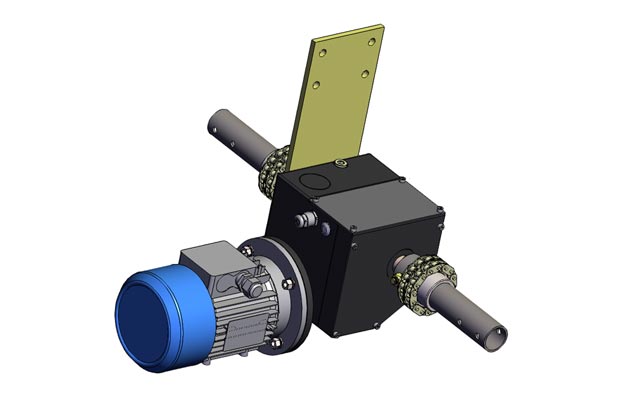

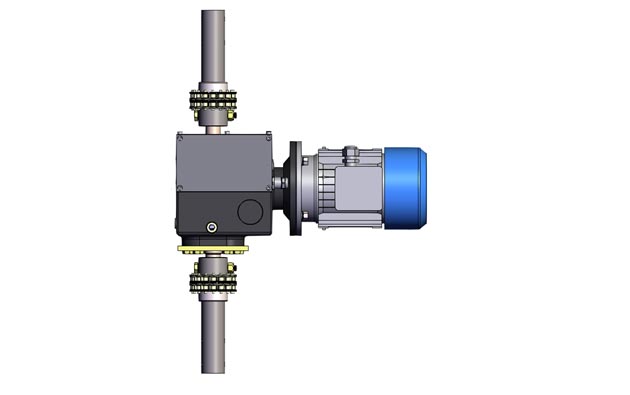

A complete unit for the ventilation side curtains. Elram’s N500 HD gearbox design with chain sprocket couplings and sleeve fitted for the curtain’s pipe (1″/2″).

  • Built-in adjustable Limit Switches.
  • Power: 3-Phase, 0.37Kw, 230/400Vac, 50Hz, 1400 rpm. [*]
  • Peak Torque: 500Nm.
  • Output speed: 2.8 rpm. [*]
  • The N500 unit comes with an Emergency Manual Operation shaft extension.
  • GearMotor weight: 21 Kg.
  • Optional Accessories:
